MIRE RESISTANCE
When the casualties are encountering material that makes contact with the tires, wheels, or body.
TIRE DEPTH
When a vehicle is mired at a depth covering the lower part of the side-wall of the tire, but not above the bottom of the wheel rim. The resistance may be estimated as up to 75% or .75 of the vehicle’s weight.
WHEEL DEPTH
When a vehicle is mired at a depth above the bottom of the wheel rim up to the center of the wheel rim. The resistance may be estimated as up to 100% or 1.0 of the vehicles weight.
BODY DEPTH
When a vehicle is mired above the center of the wheel rim or above the suspension brake components or above the rocker panels. The resistance may be estimated as up to 150% or 1.5 of the vehicle’s weight.

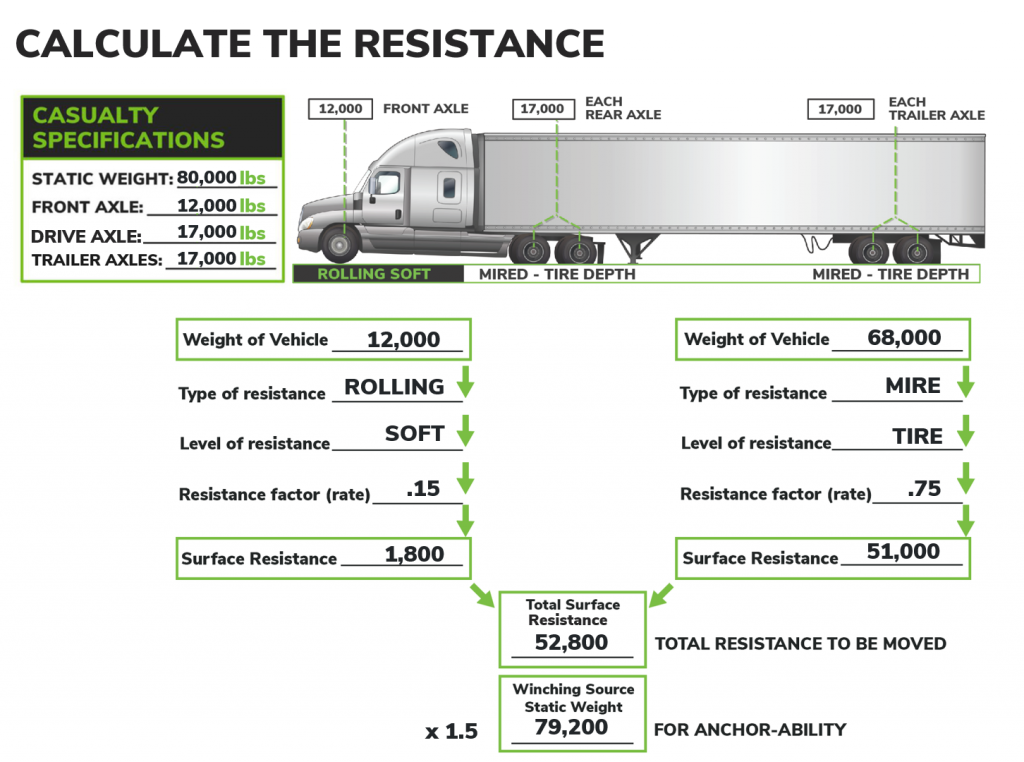

RESISTANCE PROBLEM
SCENARIO & FACTS
- Front Axle: Rolling – Soft
- Drive Axles: Mire – Tire Depth
- Trailer Axles: Mire –Tire Depth
- Casualty Static Weight – 80,000 lbs
- Trailer Axles: 17,000 lbs
- Drive Axles: 17,000 lbs ea.
- Steer Axle: 12,000 lbs
Your Title Goes Here
Your content goes here. Edit or remove this text inline or in the module Content settings. You can also style every aspect of this content in the module Design settings and even apply custom CSS to this text in the module Advanced settings.
CHECK YOUR ANSWERS
CHECK YOUR ANSWER
CHECK YOUR ANSWER
CHECK YOUR ANSWER
